Grinding Wheel Applications

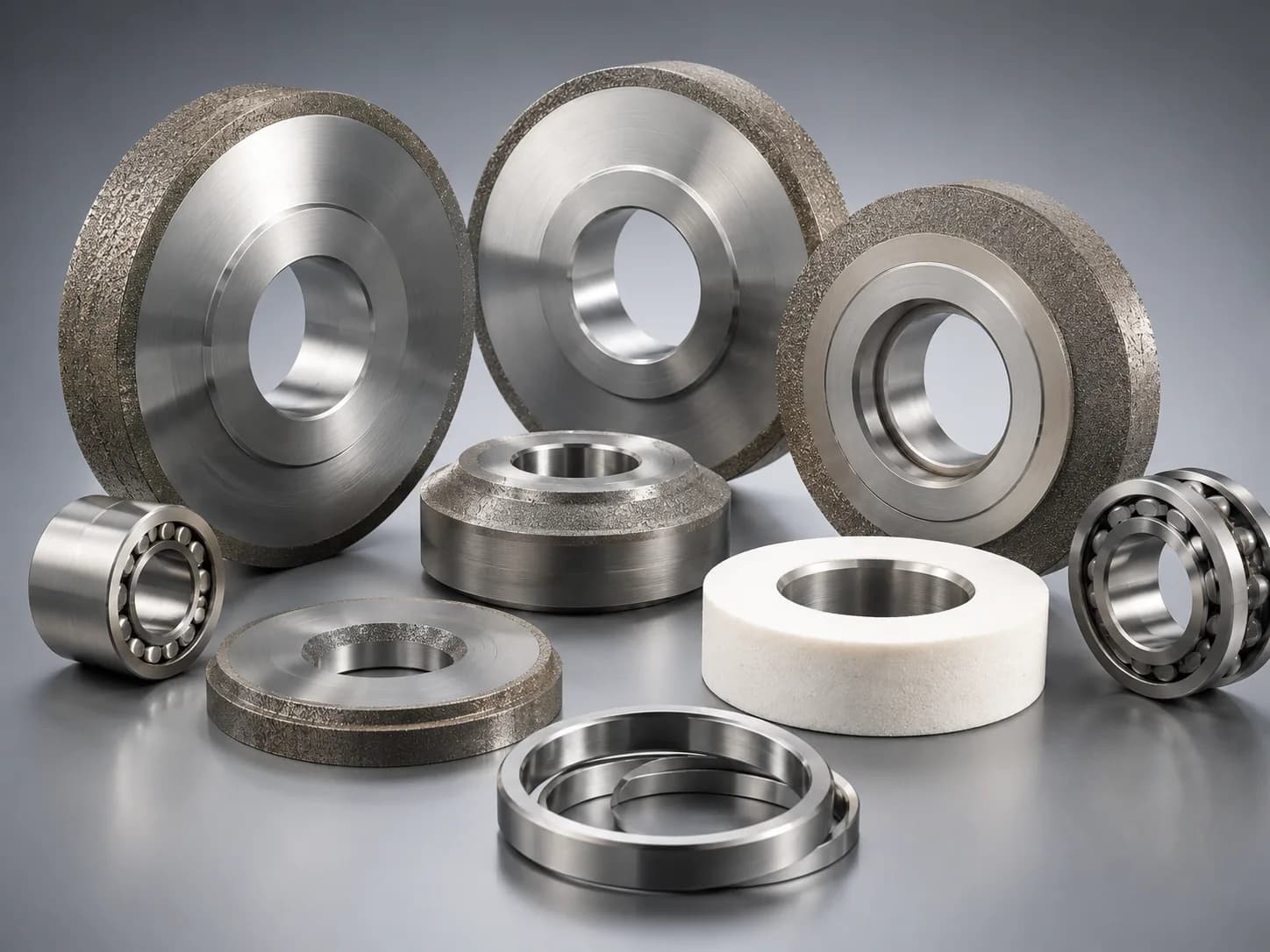

Bearing manufacturing demands consistent, high-precision grinding of bearing rings, raceways, and rolling elements. The surface finish, roundness, and dimensional accuracy of ground bearing components directly affect bearing performance, noise level, and service life. Our factory supplies CBN grinding wheels and white aluminum oxide grinding wheels specifically configured for bearing steel grinding applications — supporting bearing inner ring grinding, outer ring grinding, raceway grinding, and precision finishing operations.
Overview
Bearing grinding is one of the most demanding precision grinding applications in industrial manufacturing. Bearing rings and raceways require sub-micron roundness, mirror-quality surface finishes, and exact dimensional control to meet international bearing standards. The grinding wheel is a critical factor — the right abrasive type, bond, grit size, and hardness grade determine grinding cycle time, surface quality, wheel life, and ultimately the performance grade of the finished bearing. We supply grinding wheels configured for each stage of bearing production: rough grinding, semi-finish grinding, finish grinding, and superfinishing of inner rings, outer rings, and raceways. As a grinding wheel manufacturer, we do not manufacture or supply bearings or bearing components.
Applications
Bearing Grinding Wheels are selected for these industrial grinding applications.
Inner ring bore grinding and inner raceway grinding require wheels with excellent profile stability and consistent cutting action. CBN wheels are widely used for high-volume inner ring production, while white aluminum oxide wheels provide a cost-effective option for moderate production volumes. Wheel specifications are matched to the bore diameter, raceway curvature, and required surface finish.
Outer ring OD grinding and outer raceway grinding demand wheels that maintain form accuracy across long production runs. CBN grinding wheels deliver the profile retention and thermal stability needed for tight roundness tolerances on outer ring raceways. Vitrified bond wheels provide free-cutting performance with good dressability.
Deep groove ball bearing raceways, tapered roller bearing raceways, and spherical roller bearing raceways each have specific profile requirements. CBN wheels with formed profiles or conventional wheels with profile dressing are supplied according to the raceway geometry, bearing type, and production volume.
Cylindrical rollers, tapered rollers, and bearing balls require centerless grinding wheels with specific hardness and grit combinations. The grinding wheel must provide consistent material removal while maintaining the precise spherical or cylindrical geometry of rolling elements.
Face grinding of bearing rings requires wheels with good flatness retention and minimal edge breakdown. Both CBN and aluminum oxide wheels are used depending on the ring material, hardness, production volume, and face finish specification.
Superfinishing and fine grinding operations for high-precision bearings (P5, P4, and above) use fine-grit CBN or white aluminum oxide wheels with carefully controlled hardness and structure. These wheels deliver the sub-micron surface finishes required for low-noise, long-life precision bearings.
Workpiece Materials
Below are the most common workpiece materials matched with these grinding wheel applications.
The most common bearing steel grades worldwide. CBN grinding wheels are the preferred choice for high-volume GCr15 bearing steel grinding, delivering long wheel life and consistent surface quality. White aluminum oxide wheels are a practical alternative for lower-volume or cost-sensitive applications.
Through-hardened bearing rings and rollers at HRC 58–64 are well-suited to CBN grinding. The superabrasive grain maintains cutting efficiency against the hardened surface, reducing grinding burn risk and extending dressing intervals.
Carburized bearing steels with hard surface layers and tougher cores benefit from CBN wheel grinding. The wheel must handle the hard case without excessive wear while avoiding thermal damage to the heat-treated surface.
Stainless steel bearings for corrosive environments require grinding wheels that cut cleanly without loading. CBN wheels are effective on hardened stainless bearing steel, providing the precision and surface finish required for specialized bearing applications.
Advantages
Key benefits and performance characteristics for industrial grinding applications.
CBN grinding wheels are chemically stable when grinding bearing steels at production speeds, delivering consistent material removal without the abrasive wear that limits conventional wheel performance on hardened bearing steel above HRC 58.
For bearing factories producing thousands of rings per day, CBN wheels maintain cutting performance and profile accuracy through extended production runs, reducing wheel change frequency and improving part-to-part consistency.
Properly specified CBN and white aluminum oxide wheels support the sub-micron roundness tolerances and fine surface finishes required for P5, P4, and higher-grade precision bearings used in machine tool spindles and aerospace applications.
CBN's high thermal conductivity helps carry grinding heat away from the bearing steel surface, reducing the risk of grinding burn, residual stress, and metallurgical changes that can shorten bearing fatigue life.
Each bearing grinding machine type — internal grinders, centerless grinders, raceway grinders, surface grinders — has specific wheel requirements. We configure wheel dimensions, bond type, grit size, and hardness to match the machine parameters and process conditions.
For applications where CBN wheel cost is not justified, white aluminum oxide and pink aluminum oxide wheels in vitrified and resin bonds provide practical, lower-cost alternatives for bearing steel grinding at moderate production volumes.
Selection Guide
Use these practical tips to narrow down the right wheel specification for your grinding application.
Match the abrasive type to production volume — CBN grinding wheels are recommended for high-volume bearing production grinding hardened bearing steel above HRC 58. White aluminum oxide wheels are more cost-effective for lower volumes, softer bearing steels, or operations where frequent dressing is acceptable.
Select bond type according to the grinding stage — vitrified bond for rough and semi-finish grinding where free cutting and ease of dressing are important. Resin bond for finish grinding operations requiring reduced chatter and improved surface finish on bearing raceways.
Specify grit size by finish requirement — coarse grits (60–80) for rough grinding and stock removal on bearing rings, medium grits (80–120) for semi-finish raceway grinding, fine grits (120–240) for finish grinding and superfinishing of precision bearing surfaces.
Provide the bearing grinding machine model — wheel dimensions, mounting specifications, spindle speed, and coolant type vary by machine. Supplying the machine model helps ensure the wheel is correctly configured for safe mounting and optimal grinding performance.
Identify the target bearing grade — P0/P6 bearings have less demanding finish requirements than P5/P4 precision bearings. Higher-grade bearings require finer grit, tighter wheel balance, and more precise hardness control for the grinding wheel.
For new bearing production lines, share the bearing type, ring dimensions, material grade, hardness, grinding stock removal, cycle time target, and surface finish specification. This allows us to recommend a complete wheel specification matched to the application.
Before You Inquire
Providing the details below helps us recommend the right wheel specification and prepare an accurate factory quotation faster.
Send these details through the inquiry form, or contact us on WhatsApp for a preliminary recommendation.
Send Grinding Details →Industries
Bearing Grinding Wheels are used across these manufacturing sectors. We provide grinding wheel solutions for industrial grinding applications. We do not supply the customer workpieces themselves, such as bearings, hydraulic components, molds, or mechanical parts.
FAQ
Quick answers to common buyer questions before sending an inquiry.
For high-volume bearing steel (GCr15/100Cr6/SUJ2) grinding above HRC 58, CBN grinding wheels are generally the preferred choice due to their long wheel life, stable cutting performance, and reduced dressing frequency. For lower production volumes, softer bearing steels, or operations where CBN wheel cost is not justified, white aluminum oxide (WA) wheels in vitrified or resin bond provide a practical alternative. The specific recommendation depends on bearing type, ring size, production volume, machine, and finish target.
We supply grinding wheels for deep groove ball bearings, tapered roller bearings, spherical roller bearings, cylindrical roller bearings, needle roller bearings, and thrust bearings. Our wheels are used for grinding inner rings, outer rings, raceways, and rolling elements across these bearing types. We configure the wheel specification — abrasive, bond, grit, hardness, and dimensions — according to the specific bearing component and grinding operation.
No. We are a grinding wheel manufacturer only. We supply grinding wheels and abrasive tools used in bearing manufacturing processes. We do not manufacture, supply, or sell bearings, bearing components, bearing rings, rolling elements, or any other bearing parts. The bearing companies referenced on our website are application industry references only.
To recommend the right bearing grinding wheel, we typically need: bearing type and component being ground, workpiece material and hardness, grinding operation type, wheel dimensions, machine model, target surface finish and roundness tolerance, production volume, and any current grinding problems. A drawing or photo of the bearing component and current wheel helps us respond faster.
Yes. For high-precision bearings (P5, P4, and above), we configure wheels with finer grit sizes, tighter balance specifications, and carefully controlled hardness grades. CBN wheels are typically recommended for high-precision bearing grinding due to their superior profile retention and thermal stability. Send your bearing grade, ring dimensions, machine model, and finish target for a specific recommendation.
