Grinding Wheel Applications

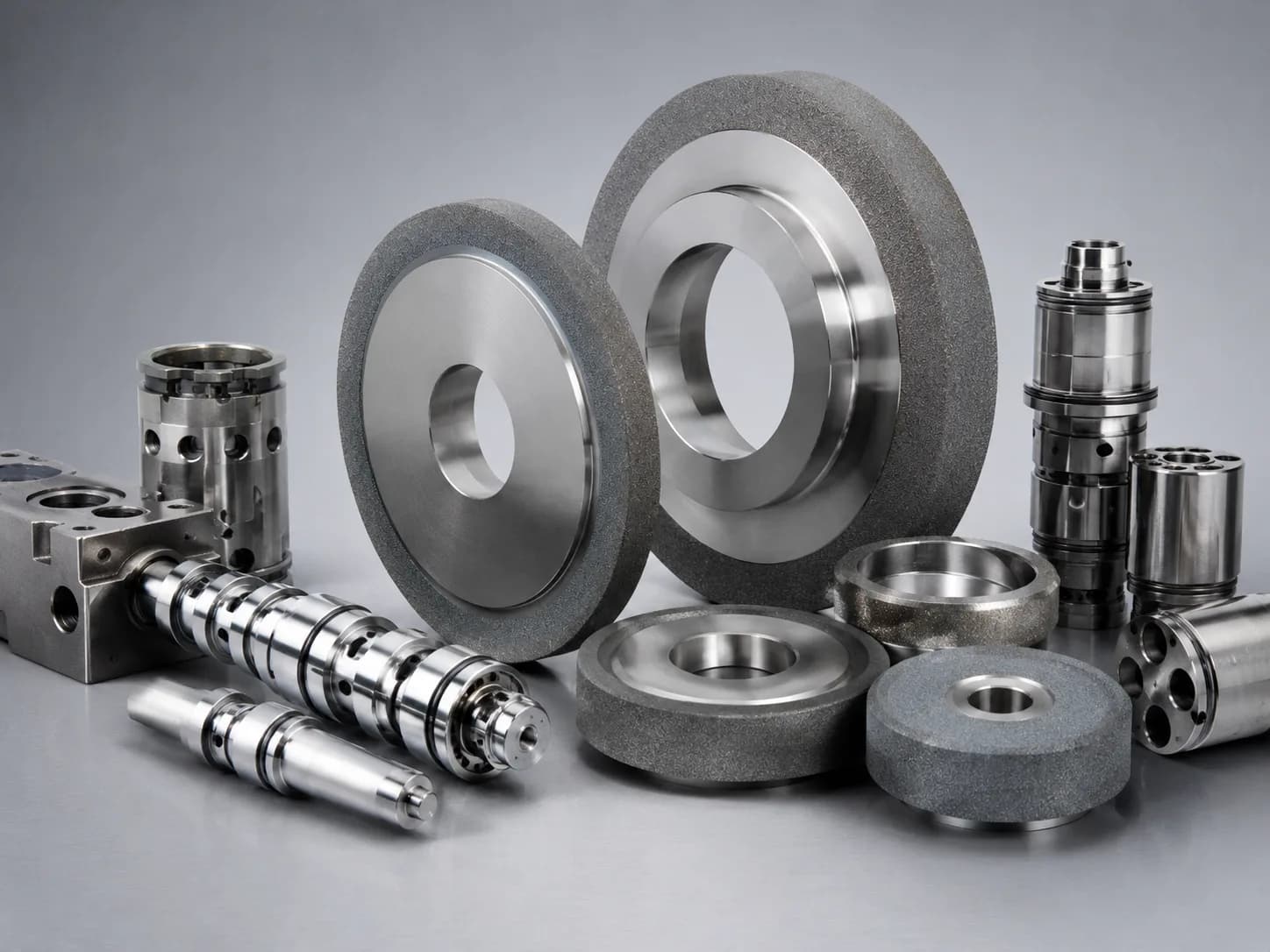

Hydraulic components — rods, cylinders, pistons, valve spools, and pump parts — require precision grinding to achieve the surface finishes and dimensional tolerances essential for hydraulic system sealing, efficiency, and service life. Chrome-plated hydraulic rods demand chip-free grinding with excellent surface control. Hardened valve components require tight clearance grinding. Our factory supplies CBN grinding wheels, diamond grinding wheels, and conventional abrasive wheels configured for hydraulic component grinding applications — supporting surface grinding, cylindrical grinding, and form grinding of hydraulic parts across mobile, industrial, and aerospace hydraulic systems.
Overview
Hydraulic systems operate under extreme pressure and demand components with exacting surface finishes, tight dimensional tolerances, and precise geometric accuracy. Hydraulic rods must have mirror-smooth surfaces for reliable seal performance. Hydraulic cylinders require consistent bore geometry. Valve spools and bodies need precise clearance fits measured in microns. The grinding wheel plays a critical role in achieving these requirements — the right abrasive type, bond system, grit size, and hardness determine whether the finished hydraulic component meets sealing, wear resistance, and contamination control standards. We supply grinding wheels configured for each hydraulic component grinding application: rod grinding, cylinder bore grinding, valve spool grinding, piston grinding, and pump component grinding. As a grinding wheel manufacturer, we do not manufacture or supply hydraulic pumps, motors, valves, cylinders, or any other hydraulic components or mechanical parts.
Applications
Hydraulic Component Grinding Wheels are selected for these industrial grinding applications.
Chrome-plated and hardened hydraulic rods require grinding wheels that cut cleanly through the chrome layer without causing chipping, spalling, or micro-cracking at the chrome-steel interface. CBN grinding wheels are the preferred choice for hydraulic rod grinding, delivering the surface finish (typically Ra 0.1–0.4 µm) required for reliable hydraulic seal performance and long service life.
Cylinder bore internal grinding demands wheels with excellent dimensional stability and consistent cutting action through the bore length. CBN and diamond internal grinding wheels are supplied for hydraulic cylinder bore grinding, with specifications matched to bore diameter, cylinder length, material, and surface finish requirements.
Hydraulic directional control valves, proportional valves, and servo valves require precise clearance fits between spools and bodies — often in the 2–10 micron range. CBN grinding wheels provide the profile stability and thermal control needed for cylindrical grinding of hardened valve spools and internal grinding of valve bodies.
Axial piston pump pistons and hydraulic motor pistons require cylindrical grinding and spherical end grinding with tight geometric tolerances. CBN and diamond wheels are configured according to piston material, diameter, spherical radius, and surface finish specification.
Gear pump gears, vane pump vanes, and piston pump components each have specific grinding requirements. The grinding wheel must handle case-hardened or through-hardened steel surfaces while maintaining the flatness, parallelism, or profile accuracy needed for efficient pump operation.
Sealing grooves, O-ring contact surfaces, and metal-to-metal sealing faces on hydraulic components require fine surface finishes free from grinding marks, chatter, or directional lay that could compromise seal integrity. Fine-grit CBN and diamond wheels deliver the required surface quality.
Workpiece Materials
Below are the most common workpiece materials matched with these grinding wheel applications.
Hydraulic rods are typically medium-carbon or alloy steel with a hard chrome plating layer. CBN grinding wheels cut cleanly through the chrome layer and steel substrate, producing the fine surface finish needed for hydraulic seal performance without chrome chipping or spalling.
Quenched and tempered alloy steels including 40Cr, 42CrMo, 20CrMnTi, and similar grades used in hydraulic valve spools, pistons, and pump components. CBN wheels maintain cutting efficiency against hardened surfaces with reduced grinding burn risk.
Hydraulic cylinder tubes with induction-hardened inner surfaces require internal grinding wheels that handle the hardened layer consistently. CBN internal grinding wheels provide the dimensional control and surface finish needed for hydraulic cylinder bore specifications.
Surface-treated hydraulic components with hard nitrided or carburized cases benefit from CBN wheel grinding. The superabrasive grain handles the hard surface layer without excessive wear while avoiding damage to the heat-treated case.
Hydraulic pump components made from hardened alloy and tool steels — including bearing steels and high-speed steels — are efficiently ground with CBN wheels. Diamond wheels may be used for components containing carbide or ceramic elements.
Advantages
Key benefits and performance characteristics for industrial grinding applications.
CBN grinding wheels cut cleanly through chrome plating on hydraulic rods without causing the chipping, spalling, or delamination that can occur with inappropriate abrasive types. The result is a smooth, defect-free surface ready for hydraulic seal operation.
Hydraulic components require specific surface finishes for sealing performance — typically Ra 0.1–0.4 µm for rod sealing surfaces and Ra 0.2–0.8 µm for other hydraulic contact surfaces. CBN and diamond wheels consistently deliver these finish requirements in production environments.
Hydraulic valve spools and bodies require clearance fits of 2–10 microns. CBN grinding wheels maintain dimensional stability and profile accuracy through production runs, supporting the tight tolerances needed for precision hydraulic valve performance.
CBN's high thermal conductivity helps manage grinding zone temperatures when grinding hardened hydraulic steels, reducing the risk of grinding burn, residual tensile stress, and surface integrity issues that could lead to premature hydraulic component failure.
Hydraulic valve spools with complex land profiles and sealing geometries benefit from formed CBN wheels that maintain profile accuracy across production volumes. Diamond profile wheels are available for hydraulic components with ultra-precise form requirements.
Each hydraulic grinding application — cylindrical rod grinding, internal bore grinding, centerless grinding, or form grinding — has specific wheel requirements. We configure wheel dimensions, bond type, grit size, and hardness to the hydraulic grinding machine and process.
Selection Guide
Use these practical tips to narrow down the right wheel specification for your grinding application.
Identify the hydraulic component and material — chrome-plated rods require wheels that handle the chrome layer cleanly. Hardened valve spools need wheels with good profile stability. The grinding wheel specification depends on the specific hydraulic part and material condition.
Match the abrasive to the material — CBN grinding wheels are the primary choice for hardened hydraulic steels (≥ HRC 50). For hydraulic components containing carbide, ceramic, or cermet elements, diamond grinding wheels may be more suitable. Conventional aluminum oxide wheels are appropriate for softer hydraulic steels.
Select bond type by operation — vitrified bond CBN wheels for cylindrical rod and cylinder bore grinding where free cutting and easy dressing are valued. Resin bond for finishing operations requiring improved surface finish. Metal bond for form grinding where maximum profile retention is needed.
Specify grit size by surface finish target — fine grits (120–240) for hydraulic rod sealing surfaces requiring Ra 0.1–0.4 µm. Medium grits (80–120) for semi-finish grinding of valve components. Coarse grits (60–80) for rough grinding and stock removal on hydraulic cylinders.
Provide the grinding machine model and coolant type — hydraulic component grinding often uses specific coolant formulations. Wheel bond selection may need to consider coolant compatibility. Machine spindle speed and power determine safe wheel dimensions and specifications.
For chrome-plated rod grinding, specify the chrome layer thickness and hardness. For form grinding of valve spools, provide the spool profile drawing. For cylinder bore grinding, provide the bore diameter, length, and material specification.
Before You Inquire
Providing the details below helps us recommend the right wheel specification and prepare an accurate factory quotation faster.
Send these details through the inquiry form, or contact us on WhatsApp for a preliminary recommendation.
Send Grinding Details →Industries
Hydraulic Component Grinding Wheels are used across these manufacturing sectors. We provide grinding wheel solutions for industrial grinding applications. We do not supply the customer workpieces themselves, such as bearings, hydraulic components, molds, or mechanical parts.
FAQ
Quick answers to common buyer questions before sending an inquiry.
For chrome-plated hydraulic rod grinding, CBN grinding wheels are generally the preferred choice. CBN cuts cleanly through the chrome layer without causing chipping or spalling, and delivers the fine surface finish (Ra 0.1–0.4 µm) required for hydraulic seal performance. The specific CBN specification — bond type, grit size, concentration, and hardness — is configured according to the rod material, chrome thickness, rod diameter, machine type, and production volume.
Yes. We supply CBN grinding wheels for hydraulic valve spool cylindrical grinding and form grinding. The tight clearance requirements of hydraulic valves (typically 2–10 microns between spool and body) demand wheels with excellent dimensional stability and profile accuracy. We configure the wheel specification according to the spool material, diameter, land profile, machine, and tolerance target.
No. We are a grinding wheel manufacturer only. We supply grinding wheels and abrasive tools used in hydraulic component manufacturing processes. We do not manufacture, supply, or sell hydraulic pumps, motors, valves, cylinders, rods, pistons, or any other hydraulic parts or mechanical components. The hydraulic industry references on our website are application references only.
For hydraulic components, CBN grinding wheels are used for hardened ferrous materials — chrome-plated rods, hardened steel valve spools, alloy steel pistons, and cylinder bores. Diamond grinding wheels are used only when the hydraulic component contains non-ferrous hard materials such as carbide, ceramic, or cermet. Using diamond on steel hydraulic parts causes rapid wheel wear. Most hydraulic component grinding applications use CBN or conventional aluminum oxide wheels.
To recommend the right grinding wheel for a hydraulic component, we typically need: hydraulic component type and material, chrome plating details if applicable, grinding operation type, wheel dimensions, machine model, target surface finish (Ra), current grinding problem if any, and production volume. A drawing or photo of the hydraulic component and current wheel helps us respond faster.
