Gallery

Custom Grinding Wheel Gallery

Explore representative custom grinding wheel structures across our conventional abrasive, CBN and diamond ranges, manufactured according to different grinding applications.

These photos show structures we can manufacture and the range of customization available. They are not a fixed stock catalogue — dimensions, grit, bond, concentration and profile are selected according to the workpiece material, machine and grinding conditions. Send your drawing or requirement →

Showing 12 of 57

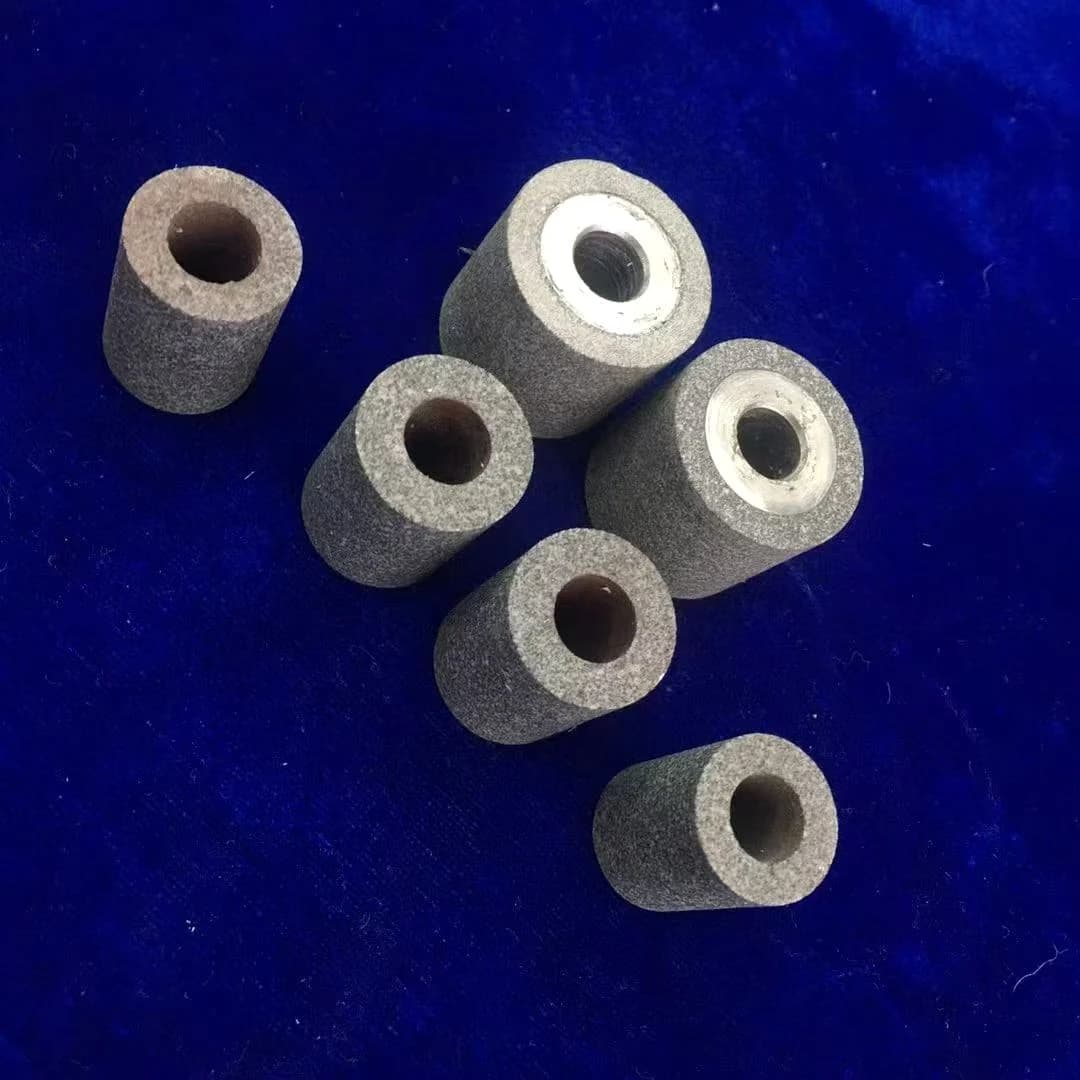

vitrified CBN internal grinding heads in several diameters with central bores — Internal grinding headsVitrified CBN

vitrified CBN internal grinding heads and short abrasive segments — Heads and segmentsVitrified CBN

vitrified CBN internal grinding sleeves and a ring-shaped abrasive body — Sleeves and ringVitrified CBN

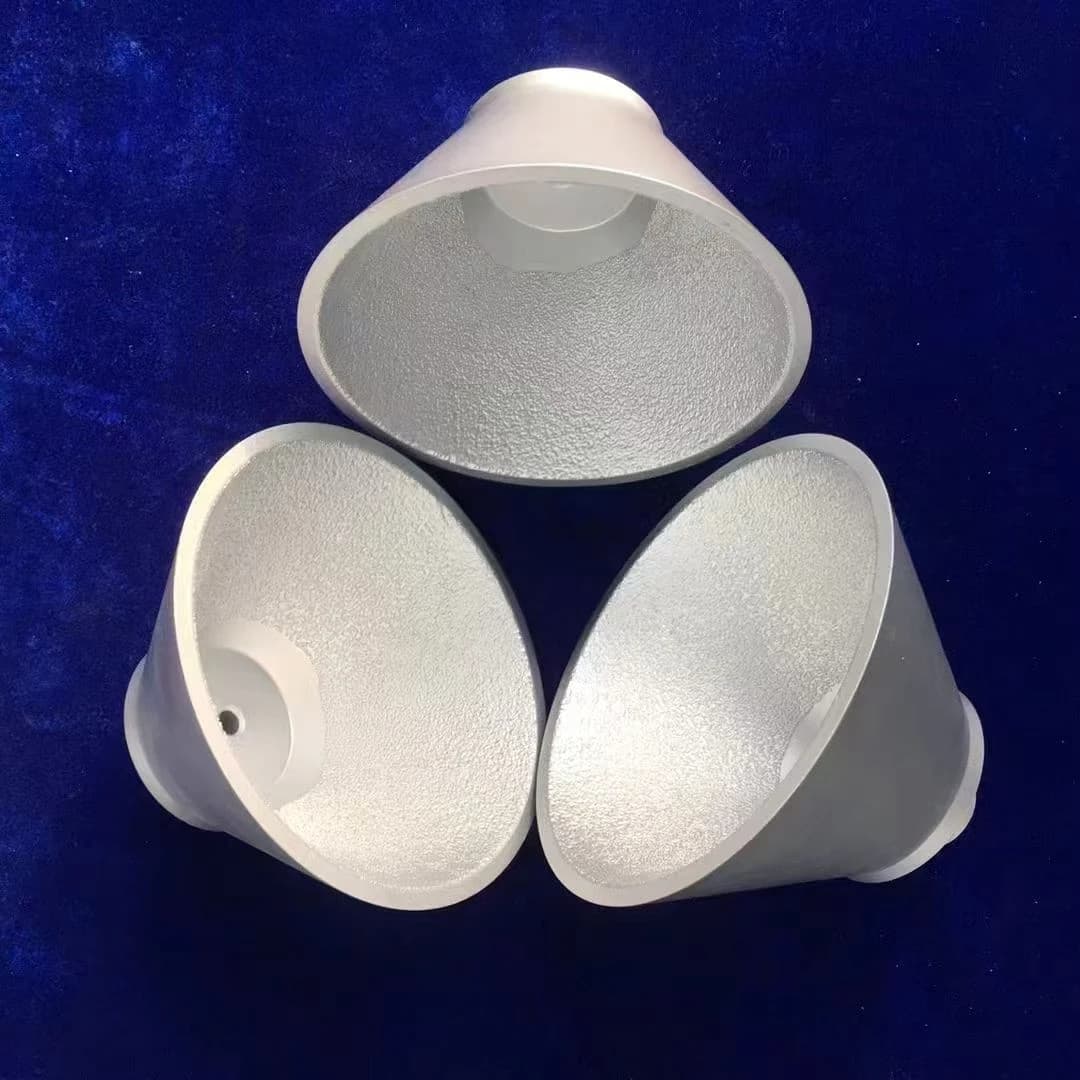

brazed diamond cup tools with a coated working surface — Cup formsBrazed Diamond

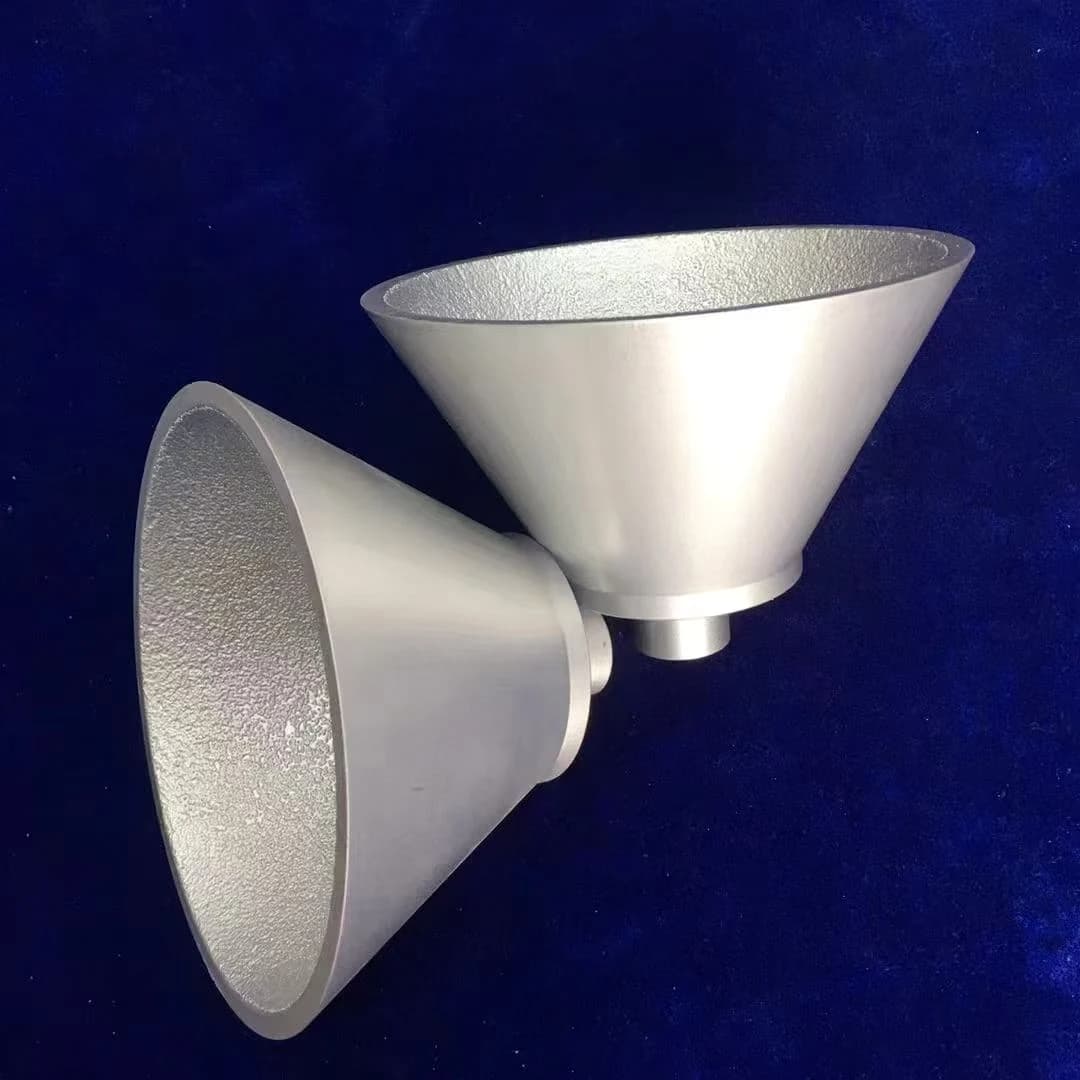

brazed diamond cup and flared cone tools — Cup and cone formsBrazed Diamond

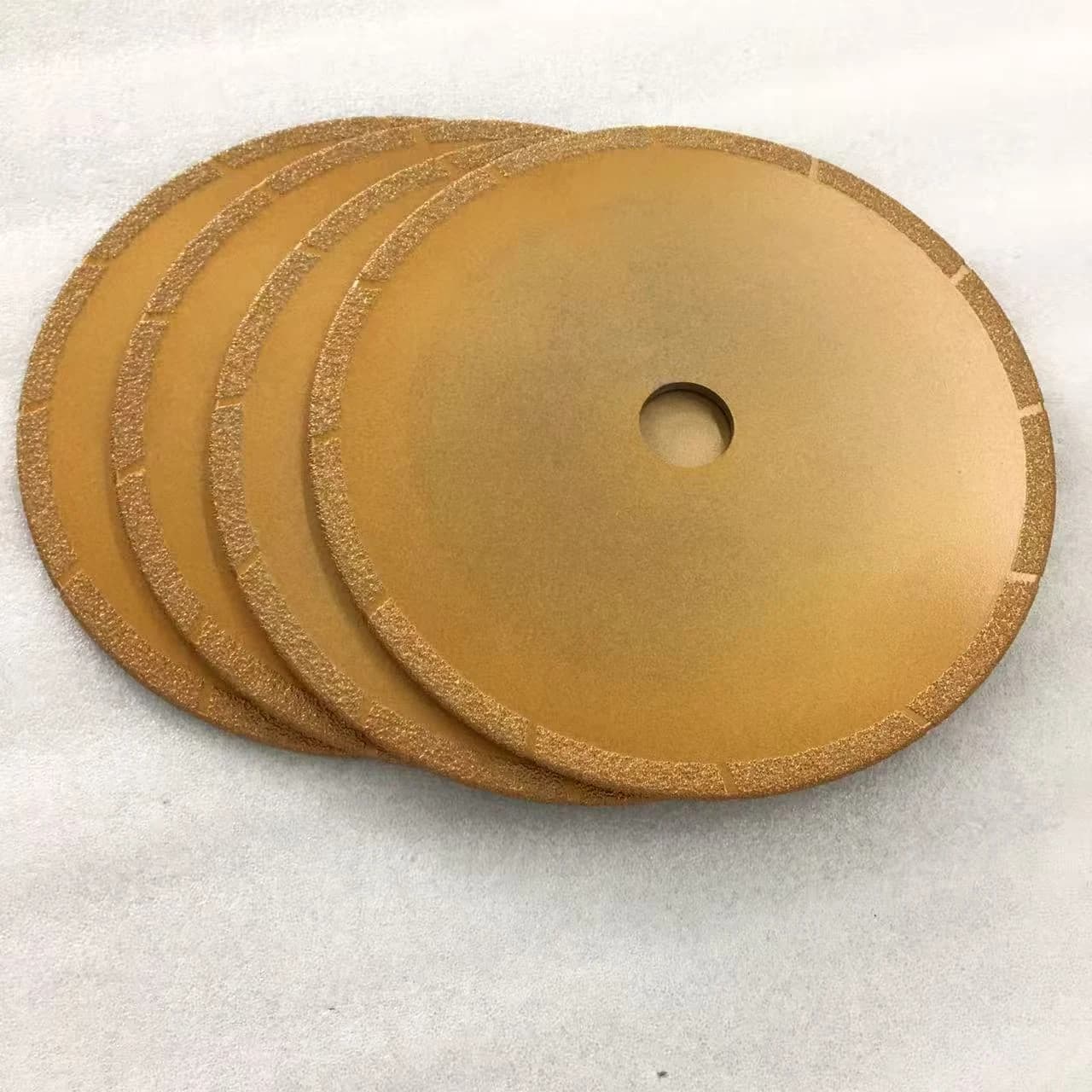

thin brazed diamond discs with central bores — Thin discsBrazed Diamond

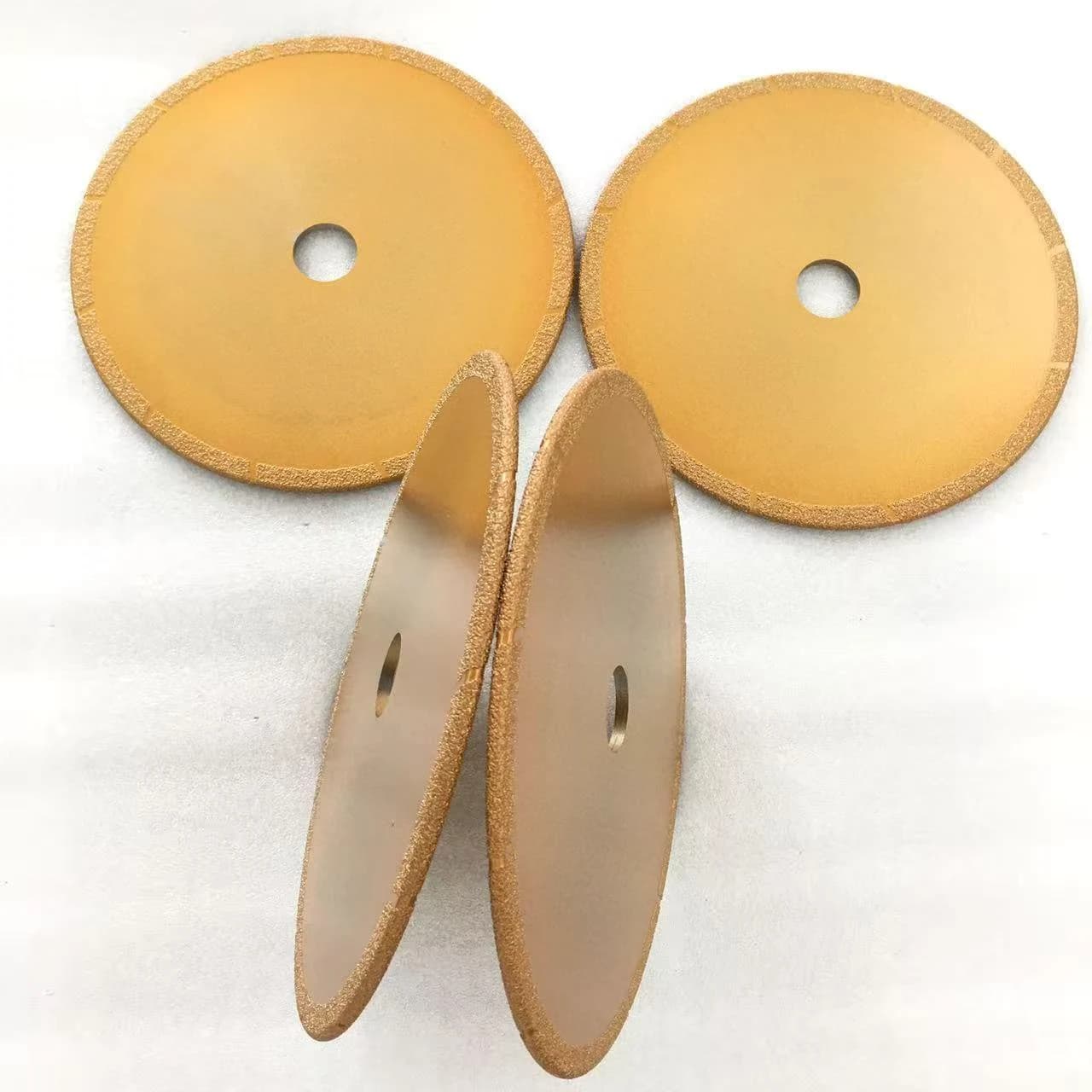

thin brazed diamond discs shown as full circles and segment shapes — Thin discs and segmentsBrazed Diamond

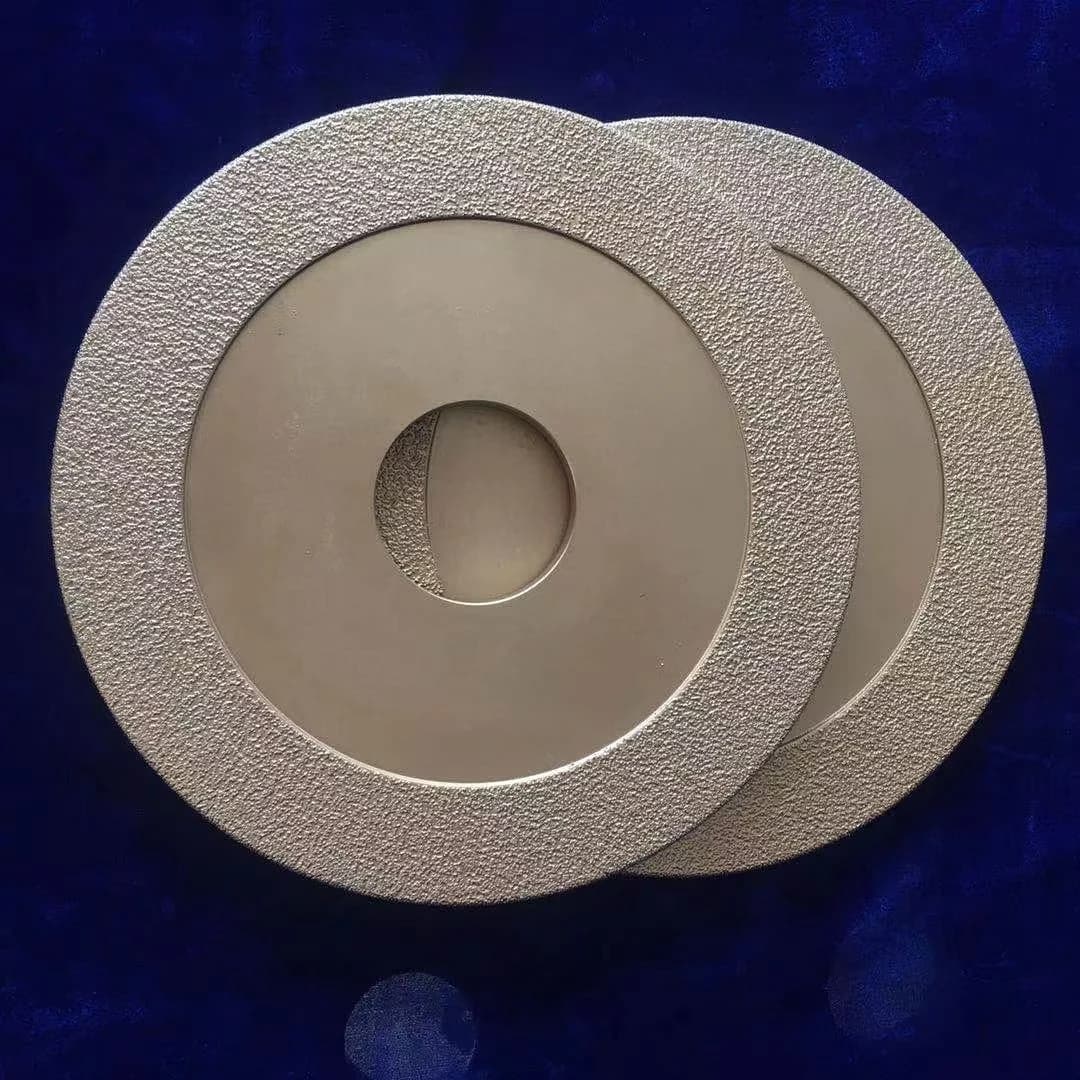

flat brazed diamond discs coated around the working face — Flat discsBrazed Diamond

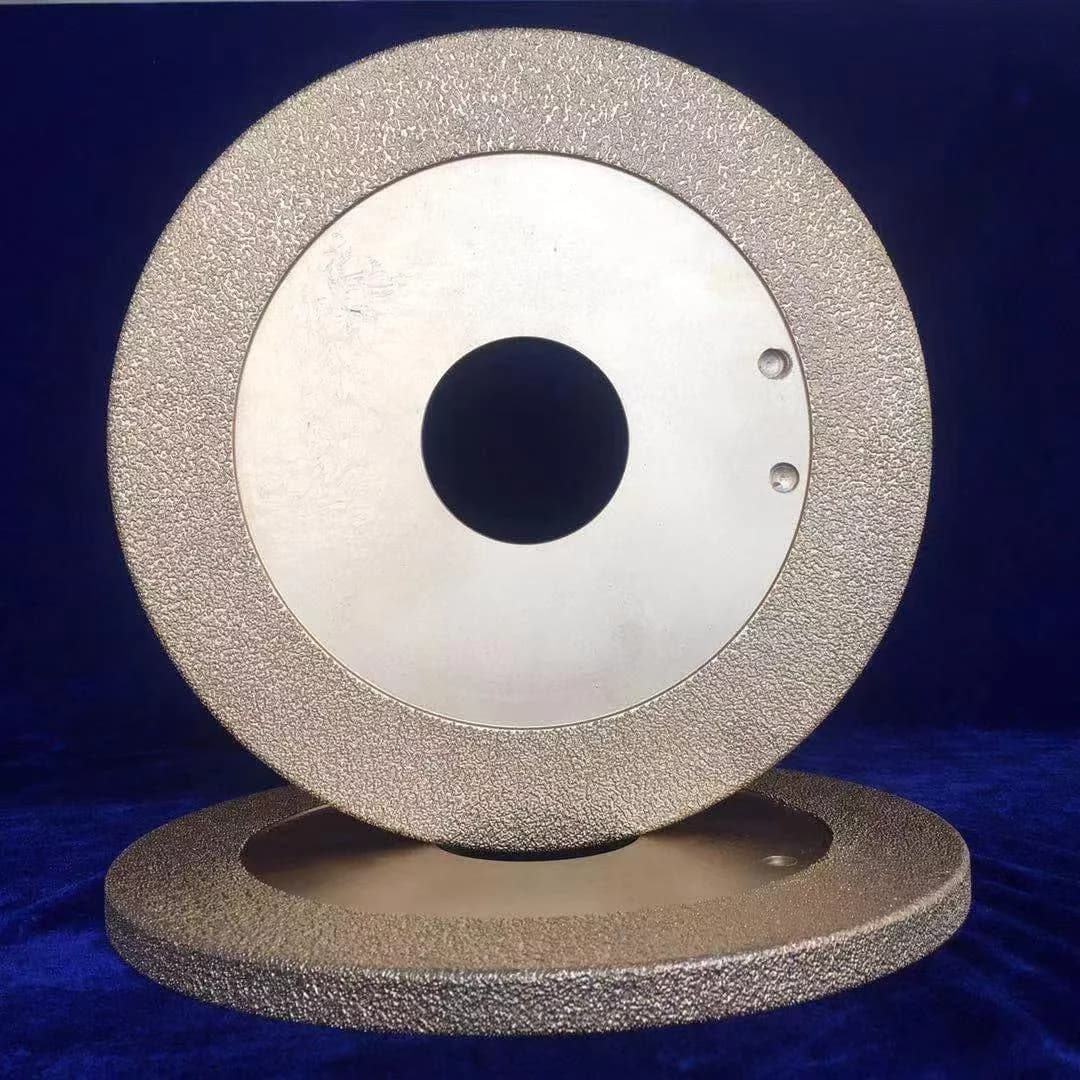

brazed diamond flat disc with a coated rim and bore — Flat disc, coated rimBrazed Diamond

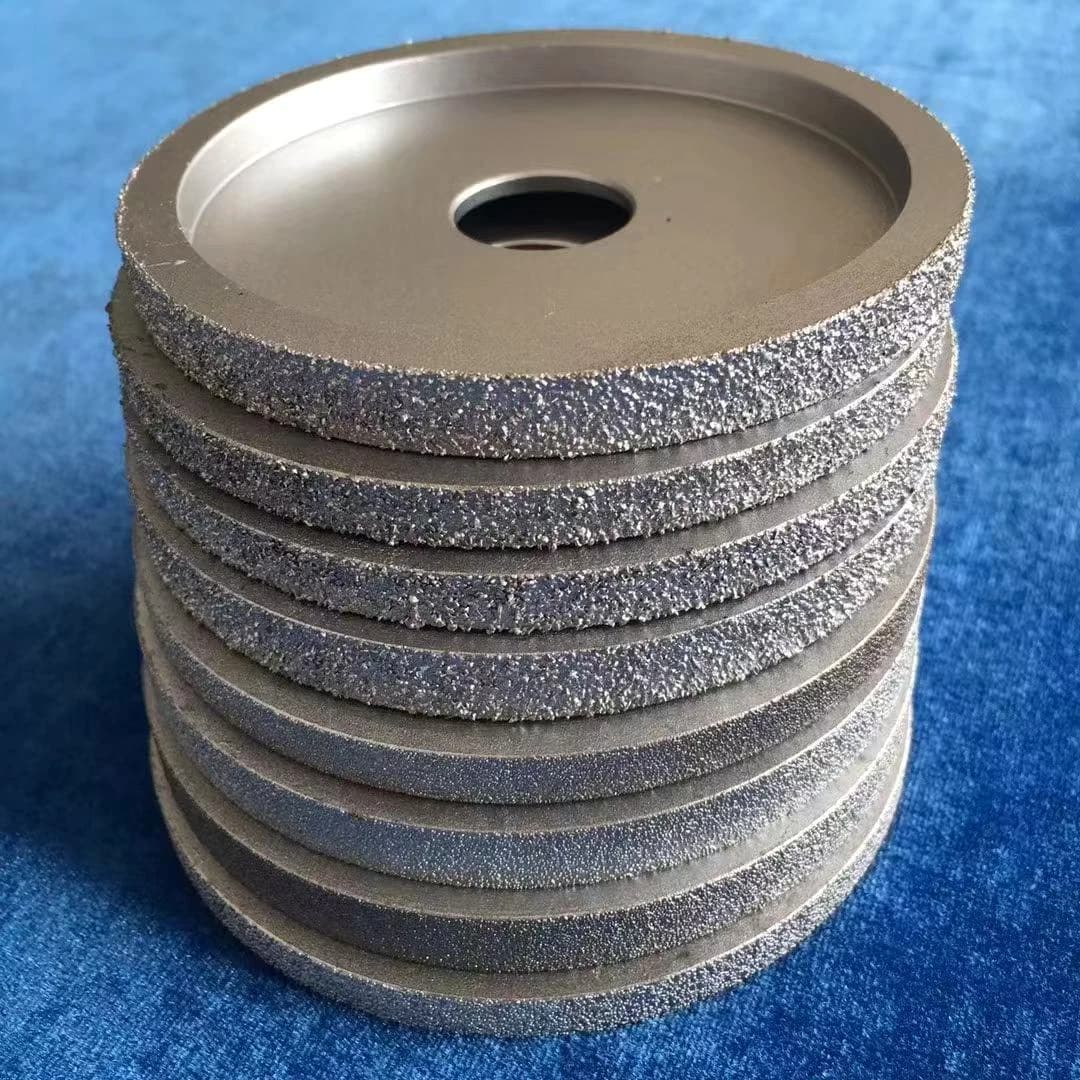

Profile wheels, stackedBrazed Diamond

Profile wheels, largeBrazed Diamond

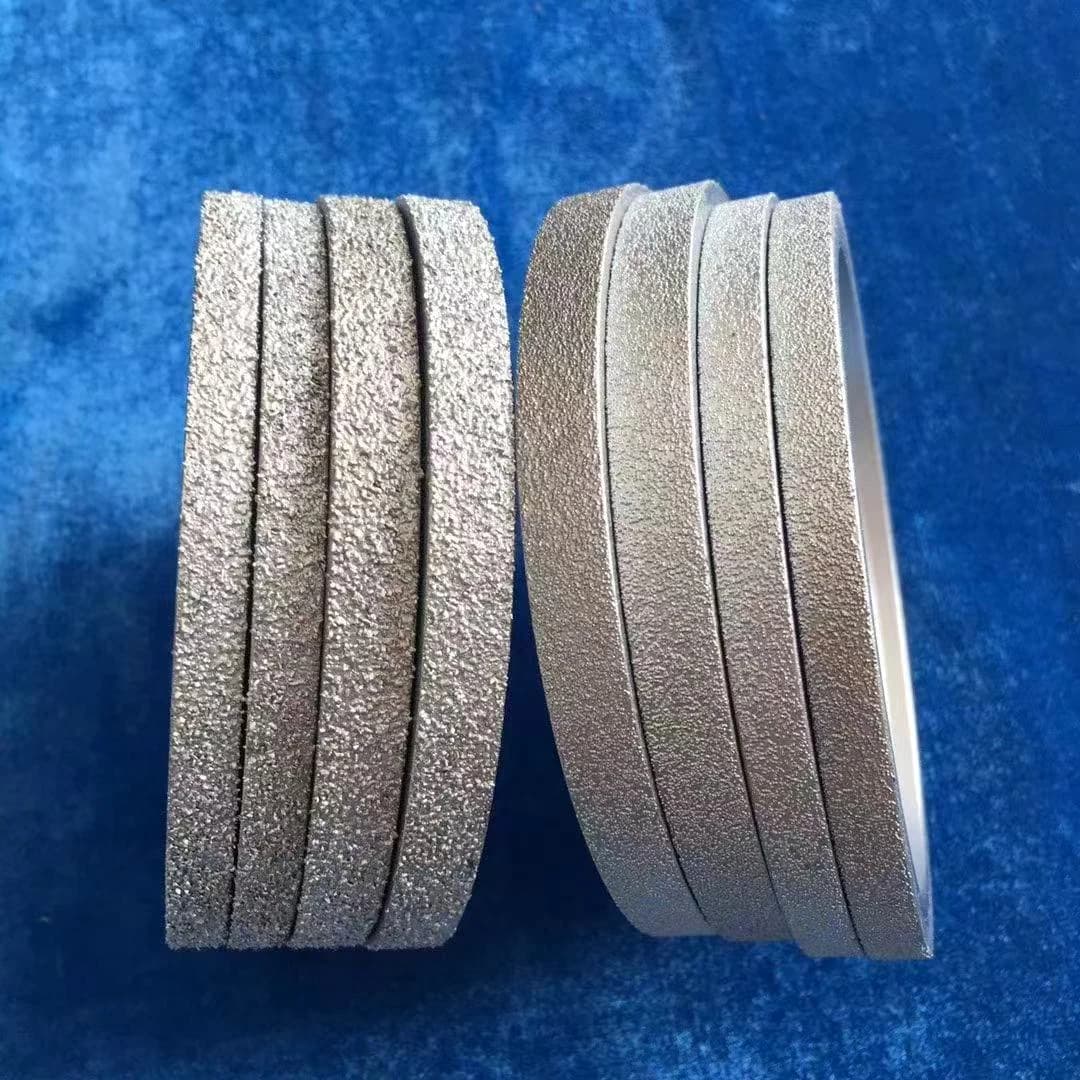

Profile wheel setBrazed Diamond
